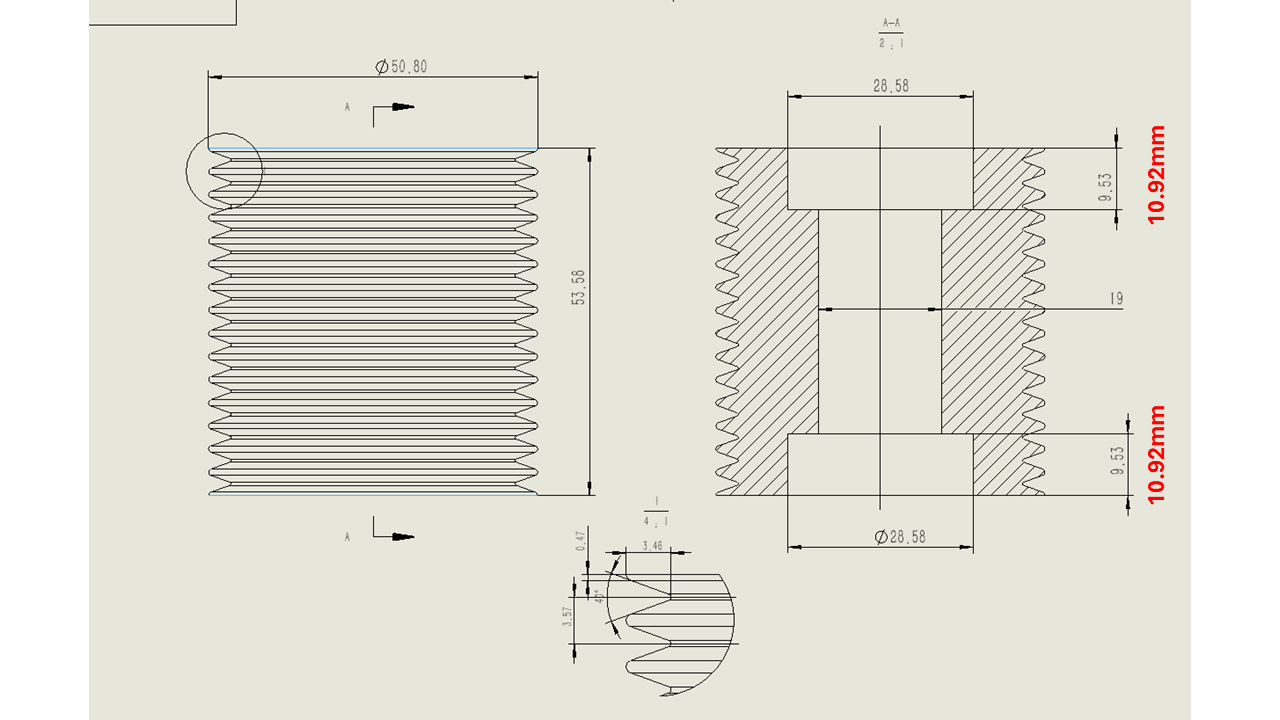

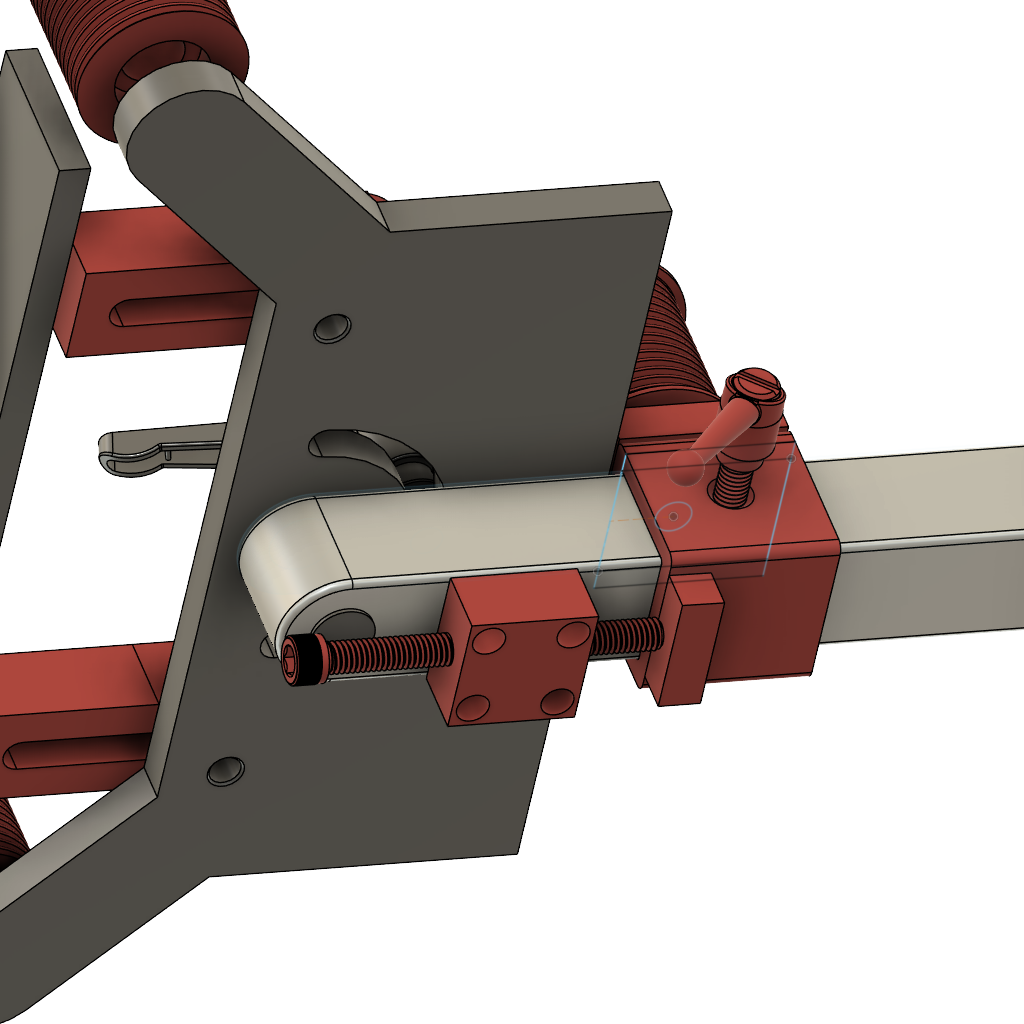

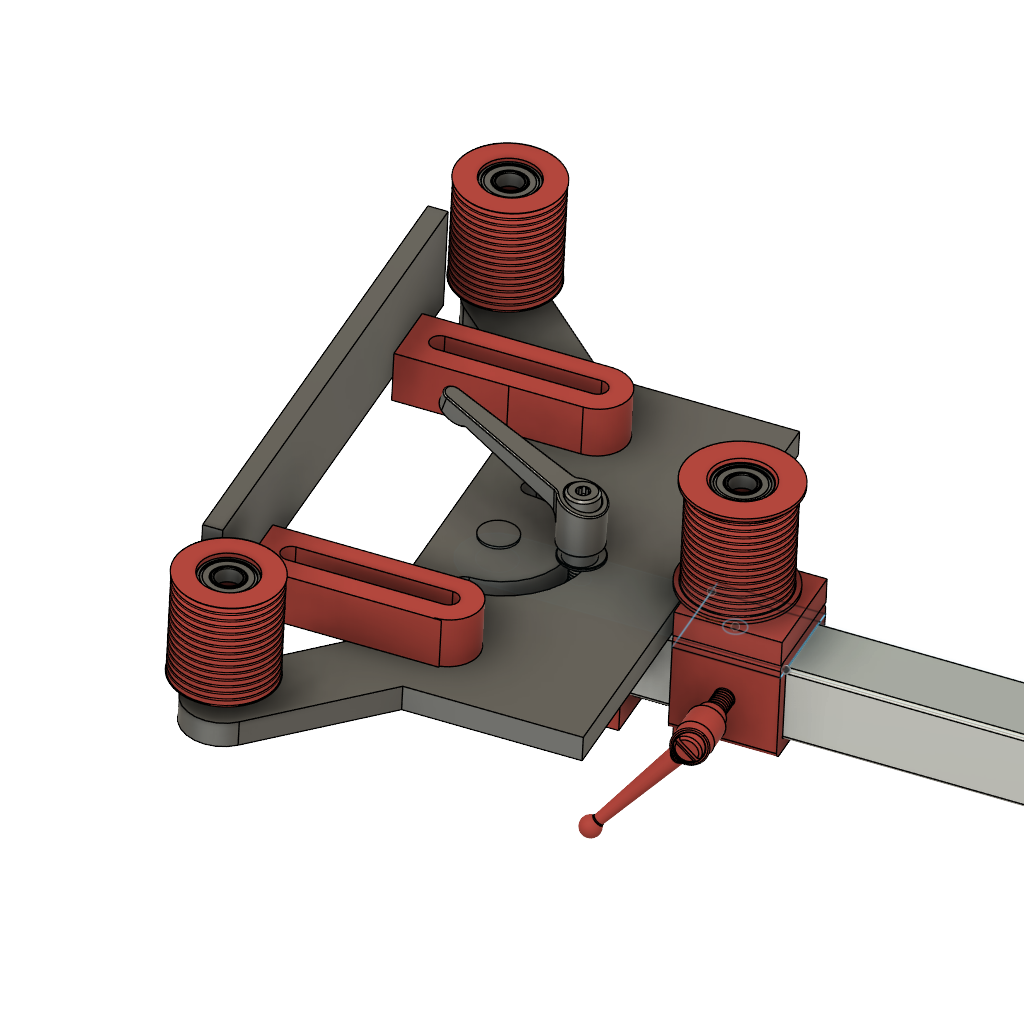

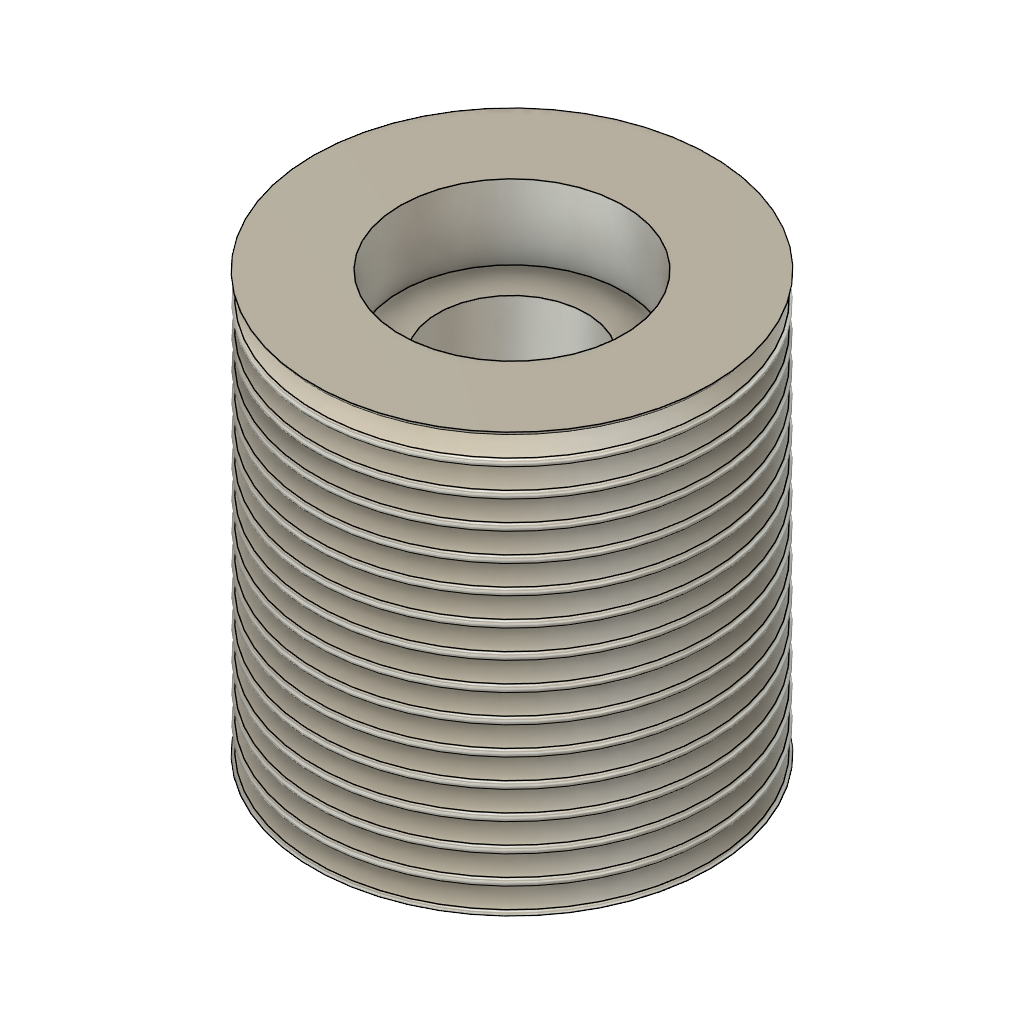

That was the goal for this design. Low cost, easily built without a mill or lathe. And with a larger platen than many that are on the market. The initial design is done and materials have been purchased for some testing. The key for this design is access to the grooved wheels at a reasonable cost and readily available belts in various lengths to fit your existing platen.

Imagine having a rotary platen for under $100.
